CO₂ Laser Cutting Machine with Gas Laser Technology for Tube Cutting (80W-180W)

Name: CO₂ Laser Cutting Machine with Gas Laser Technology for Tube Cutting (80W-180W)
Brand: SHANGHAI FAMOUS TRADE CO.,LTD
SKU: CO₂ Laser Cutting Machine
Price: 50,002.00 USD
Availability: InStock

Детали продукта

Place of Origin: CHINA

Фирменное наименование: ZMSH

Сертификация: rohs

Model Number: CO₂ Laser Cutting Machine

Условия оплаты и доставки

Minimum Order Quantity: 5

Цена: by case

Delivery Time: 3-6 months

Payment Terms: T/T

Supply Ability: 1000pcs per month

Получите самую лучшую цену

Детали продукта

Характер продукции

Выделить:

LASER POWER:	80W 100W 120W 150W 180W	LASER WAVE LENGTH:	10.64μm
ENGRAVING RANGE:	6040 / 9060 / 1080 / 1280 / 1390 / 1480 / 1680 / 1610 / 1820	DRIVE MODE:	Stepper micro-step CNC system
CARVING SPEED:	0-400mm/s	WORKING TABLE:	Honeycomb/grid/blade bar

LASER POWER:	80W 100W 120W 150W 180W
LASER WAVE LENGTH:	10.64μm
ENGRAVING RANGE:	6040 / 9060 / 1080 / 1280 / 1390 / 1480 / 1680 / 1610 / 1820
DRIVE MODE:	Stepper micro-step CNC system
CARVING SPEED:	0-400mm/s
WORKING TABLE:	Honeycomb/grid/blade bar

CO₂ Laser Cutting Machine with Gas Laser Technology for Tube Cutting (80W-180W)

CO₂ laser cutting machine of equipment overview

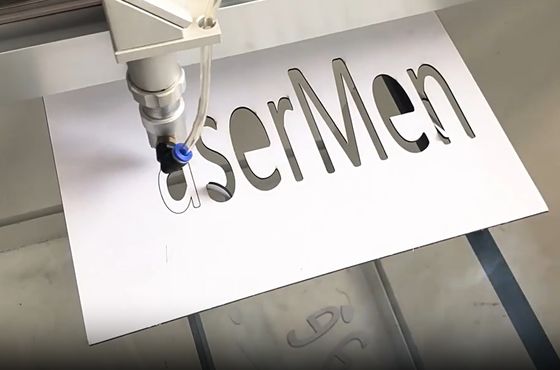

CO₂ Laser Cutting Machine with Gas Laser Technology for Tube Cutting (80W-180W)

CO₂ Laser Cutting Machines utilize gas laser technology for high-precision industrial cutting. The system employs a CO₂ gas mixture (with auxiliary gases like He and N₂) to generate a 10.64μm infrared laser beam through high-voltage discharge. This beam is amplified by a resonant cavity and focused via a galvanometric scanner and F-Theta lens into micro-sized spots (0.01-0.2mm diameter). Leveraging the photothermal effect, the laser vaporizes or melts the material surface, with assist gases (e.g., oxygen, nitrogen) blowing away molten residues to form smooth edges. Modular designs support 2D planar cutting, 3D contour cutting, and tube cutting, applicable to non-metals (wood, plastics, glass, ceramics) and select metals (thin steel sheets, aluminum foil).

CO₂ laser cutting machine of key parameters

LASER POWER	80W	100W	120W	150W	180W
LASER WAVE LENGTH	10.64μm
ENGRAVING RANGE	6040 / 9060 / 1080 / 1280 / 1390 / 1480 / 1680 / 1610 / 1820
DRIVE MODE	Stepper micro-step CNC system
CARVING SPEED	0-400mm/s
WORKING TABLE	Honeycomb/grid/blade bar
CUT HEAD NUMBER	Single head/Dual head/Quad head (Optional)
ENGRAVING DEPTH	0.1mm~5.0mm (Depending on the material)
WORKING TEMPERATURE	0-50℃
COOLING WAY	Water cooling
WORK ENVIRONMENT	Dry, clean, and ventilated
POWER SUPPLY	AC220V/50Hz (Custom optional)
POWER CONSUMPTION	≥1KW	≥2KW		≥3KW
WEIGHT	≈380KG

CO₂ laser cutting machine of working principle

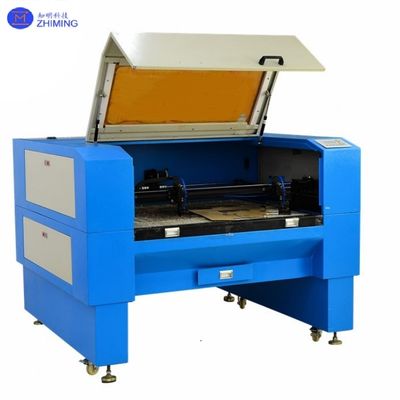

CO₂ Laser Cutting Machine with Gas Laser Technology for Tube Cutting (80W-180W) 1

1. Laser Generation:

CO₂ gas mixed with auxiliary gases (He/N₂) fills a high-voltage discharge tube. High-voltage discharge induces gas discharge, exciting CO₂ molecules to emit 10.64μm laser light.
The beam is amplified through a resonant cavity (e.g., parallel-plane or folded cavity) to produce stable TEM00 fundamental mode output with beam quality M² ≤ 10 and adjustable power (10-1500W).

2. Cutting Process:

The focused laser beam scans the material surface in raster/vector patterns, vaporizing surface layers via energy density exceeding 10⁶ W/cm².
Assist gases (oxygen accelerates oxidation, nitrogen suppresses oxidation) blow away molten residues through coaxial nozzles, creating burr-free edges with <0.1mm Heat-Affected Zone (HAZ).

3. Control Systems:

Integrated CAD/CAM software supports DXF/PLT file imports, enabling multi-axis linkage (3D five-axis cutting) and automated path planning with ±0.01mm positioning accuracy.

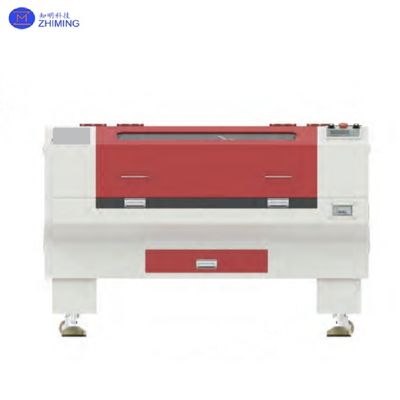

CO₂ Laser Cutting Machine with Gas Laser Technology for Tube Cutting (80W-180W) 2

CO₂ laser cutting machine of technical features

CO₂ Laser Cutting Machine with Gas Laser Technology for Tube Cutting (80W-180W) 3

1. Superior Performance:

High Precision: Repeatability positioning accuracy ±0.005mm, kerf width 0.1-0.2mm, ideal for precision electronics and medical devices.
High Stability: Imported RF metal lasers (e.g., Coherent,锐科) with 45,000-hour lifespan and air/water-cooled systems for continuous operation.

2. Material Compatibility:

Non-Metals: ABS, PVC, wood, acrylic, ceramics cut without discoloration or carbonization.
Metals: Thin steel sheets (<5mm), aluminum foil (<2mm) require surface coating or oxygen assist.

3. Efficiency & Sustainability:

Cutting Speed: Up to 10m/min (thin sheets), 5-10× faster than mechanical cutting.
Zero Consumables: Eliminates molds/tooling costs, improving material utilization by >30%.

4. Intelligent Integration:

Auto-focus, smoke extraction systems compliant with CE safety standards.
Remote monitoring and batch task management for Industry 4.0 compatibility.

CO₂ laser cutting machine of application fields

CO₂ Laser Cutting Machine with Gas Laser Technology for Tube Cutting (80W-180W) 4

1. Packaging & Labeling:

Food/Pharma Packaging: Tamper-proof codes on PET bottle caps, UV-protected invisible marks on drug packaging.

Labels: High-precision die-cutting for paper/film, compatible with UV post-printing.

2. Advertising & Crafts:

Acrylic/Wood Engraving: Complex patterns for signage, seamless edges requiring no polishing.

Glass/Jade Art: Relief and through-cut designs preserving natural textures.

3. Industrial Manufacturing:

Automotive: Interior trim (leather/plastic) custom cutting, ozone-resistant seals.

Aerospace: Carbon fiber composites cutting with zero delamination.

4. Medical & Education:

Medical Devices: Surgical tools precision cutting meeting biocompatibility standards.

Education: Rapid prototyping of teaching models (wood/plastic).

5. Architecture & Furniture:

Architectural Models: Wooden/plastic complex structures with high-fidelity replication.

Custom Furniture: Laser-etched decorative patterns reducing material waste.

CO₂ Laser Cutting Machine with Gas Laser Technology for Tube Cutting (80W-180W) 5

CO₂ laser cutting machine of sample display

Technological Trends:

AI-Driven Optimization: Algorithms reducing energy consumption by 15% and improving speed.
Multi-Material Compatibility: Dedicated laser heads for hybrid metal-nonmetal cutting.
Green Manufacturing: Water-cooled systems with 40% higher efficiency and compliant exhaust treatment.

CO₂ Laser Cutting Machines, with their 10.64μm wavelength absorption efficiency, non-contact precision, and modular scalability, dominate precision manufacturing. Future advancements in AI path optimization and multi-material processing will expand applications to ultra-thin materials (PET films) and dynamic production line cutting.

CO₂ Laser Cutting Machine with Gas Laser Technology for Tube Cutting (80W-180W) 6

END PUMP LASER MARKING MACHINE 8W-40W laser wave length 1064nm

CO₂ Laser Marking Machine for Non-Metallic Materials with Operating Temperature 0-50°C

CO₂ laser cutting machine of Q&A

1. Q: What materials can CO2 laser cutting machines handle?

A: CO2 lasers cut non-metals (wood, acrylic, leather, fabric) and thin metals (stainless steel, aluminum) with 80W-180W power, achieving 0.1mm precision for packaging, signage, and medical devices .

2. Q: Which industries use CO2 laser cutting the most?

A: Packaging (food/pharma labels), advertising (acrylic signs), medical (surgical tools), and automotive (interior trim) leverage CO2 lasers for high-speed, burr-free cutting .

Tags: #CO₂ Laser Cutting Machine, #80W-180W, #Positioning Accuracy±0.05mm, #Gas Laser Technolog, #Tube Cutting
